19 inch Server cabinet 24U or 42U VE type

Basic Info

Model No.: KB-S-VE

Product Description

19 inch Server Cabinet 24U or 42U VE type


  1. Packaging:VE cabinets could be shipped into disassembled packing,saving transportation and storage cost.

  2. New appearance design : Side door:split into 2 parts, lockable with square locks.

  3. Front and rear door:pluggable front door and rear doors, with external hinges. Casters:built-in installation design

  4. Frame:duplex profile frames with patent ,could be connected by 8 pieces of screws

  5. Front and rear doos:"two points" locking design making doors and frames closed tighter ,turning angle up to 180 degree

  6. Cable entries on top and bottoms:sliding and adjustable cable entries on top and bottom, edges of cable entries are with the design to prevent wires from scratching

  7. Fan unit: installed from top outside of cabinet, easy to install and maintain.

  8. Mounting rails: installation positions of mounting rails could be adjustable quickly. Dedicated channel alignment reserved in internal of cabinets.

  9. Cabinet structure: patented structure

  10. Maximum loading capacity:1300KG

Main Part:

ve cabinet main part

ve cabinet structure

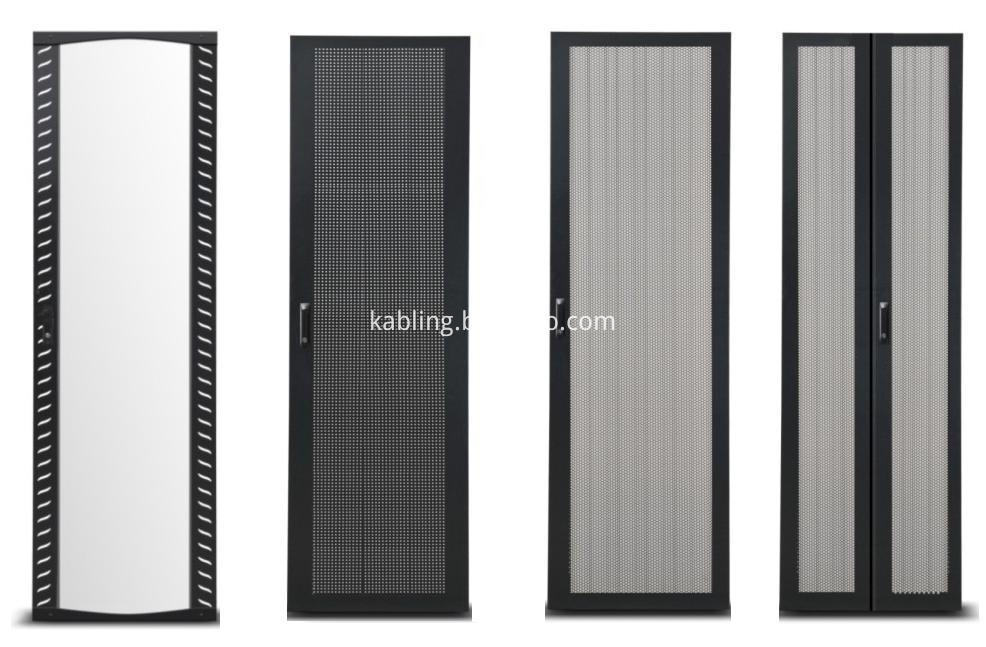

Front door & rear door optional:

A:Tempered glass door, long-handled lock, 180 degree Maximum opening angle;

Material:sheet steel 4MM , safety glass Surface Finish: Powder coated

B:Sheet steel door with hexagon hole. long-handled lok;180 degree Maximum opening angle;

Material:sheet steel Surface Finish: Powder coated

C:High -density vented door; Slotted suiface (SW7 hexagon) Air inlet opening>67%;

Material:sheet steel Surface Finish: Powder coated

D:High density doubled opened damper (SW7 hexagon) Air inlet opening>67%;long-handled lok;180 degree Maximum opening angle;

Material:sheet steel Surface Finish: Powder coated

ve door

ve order

How to make order:

1. Please inform us which models,quantity and shipment address for order.
2. We will make PI for you.
3. Please confirm the PI, and arrange the payment.
4. We arrange the production and shipment.

Contact us if you need more details on Standing Network Cabinet. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 19 Inch Service Network Cabinet、VE Type Network Cabinet. If these products fail to match your need, please contact us and we would like to provide relevant information.
